The components of EV vehicles have become the backbone of a world moving towards more sustainable technologies. The battery is the heart of the car, along with the electric motor that pulses with clean energy.
The details lie in the precise and advanced elements that are revolutionizing the world of mobility. In this article, we will work to explain all of these components closely, and how they work in harmony to provide an ideal experience. Get ready to learn the secrets of modern technology in the components of EV vehicles.

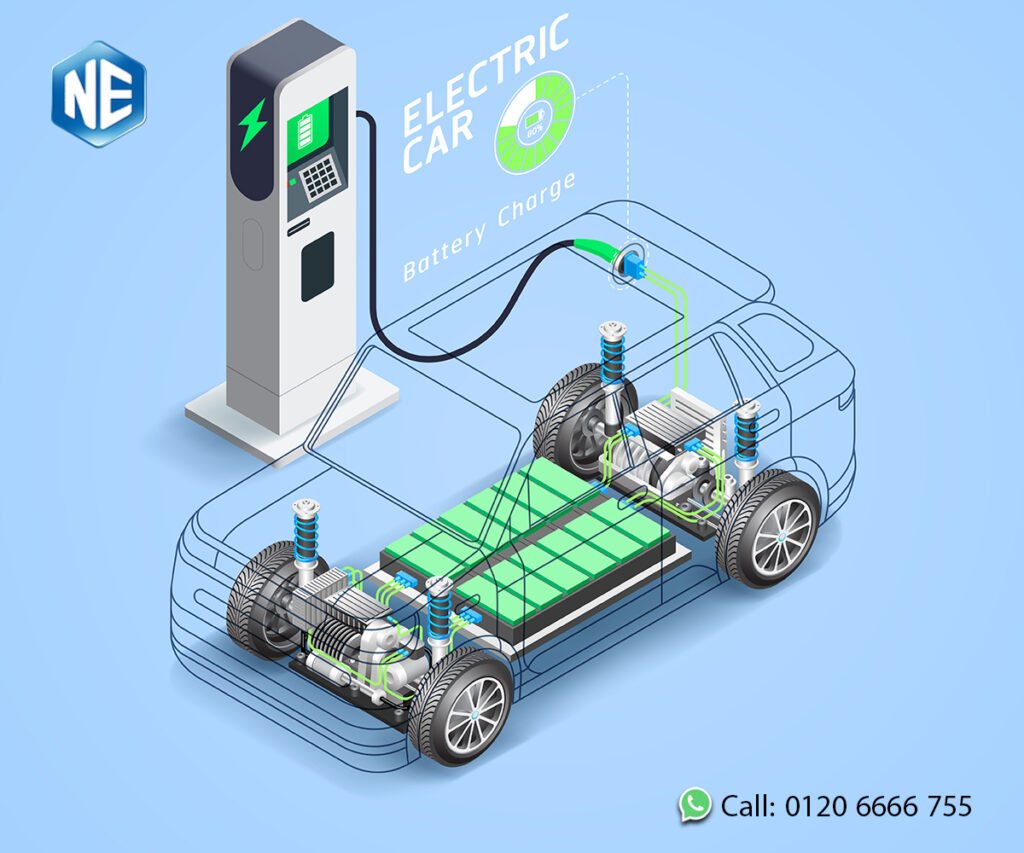

How do All-Electric Cars Work?
All-electric vehicles (BEVs) operate in a completely different way than gasoline or diesel-powered cars. Here’s a simple explanation of how they work:
Battery:
- The battery is the primary power source in an electric vehicle.
- It consists of a large number of electrical cells that store electrical energy.
- The battery is charged by connecting the vehicle to an external power source, such as a home or public charging point.
- The battery’s capacity (in kilowatt-hours, kWh) determines the vehicle’s range on a single charge.
Electric Motor:
- Instead of the internal combustion engine found in conventional cars, electric vehicles use one or more electric motors.
- When the motor is supplied with electrical energy from the battery, it converts this energy into rotational kinetic energy.
- The electric motor has instant torque, providing quick and smooth acceleration.
- Most electric vehicles use alternating current (AC) motors, but some use direct current (DC) motors for auxiliary components.
Electronic Control Unit (ECU) or Power Control Unit:
- This unit acts as the “brain” of the electric propulsion system.
- It manages the flow of energy between the battery and the motor.
- It controls the motor’s speed and torque based on driver input (such as pressing the accelerator pedal).
- It also oversees other functions such as regenerative braking.
Regenerative Braking System:
- This is an important feature in electric vehicles that helps recover some energy during deceleration or braking.
- When the driver takes their foot off the accelerator or applies the brakes, the electric motor turns into a generator.
- The generator converts the vehicle’s kinetic energy back into electrical energy and feeds it back into the battery, increasing energy efficiency and range.
Transmission (usually simple):
- In most electric vehicles, the transmission is very simple and often consists of a single fixed reduction gear.
- Due to the electric motor’s instant torque and wide speed range, electric vehicles don’t require a complex gearbox like internal combustion vehicles.
- This simplifies the drivetrain and reduces maintenance.
An electric vehicle draws its power from a rechargeable battery, which powers an electric motor. The electric motor converts this energy into motion, which drives the wheels.
The electronic control unit helps manage power flow, while the regenerative braking system recovers some energy during deceleration and braking.
This system is much simpler than the propulsion system in conventional cars, resulting in fewer moving parts and reduced maintenance requirements.
Best types of batteries for electric cars
Lithium-ion batteries are currently the best type of battery for electric vehicles and are the most widely used in most modern electric vehicles. Therefore, in the following lines, we explain the best types of batteries for electric vehicles in detail:
- Lithium Nickel Manganese Cobalt (NMC) batteries: They offer a good balance between performance, cost, and lifespan and are commonly used in many electric vehicles.
- Lithium Iron Phosphate (LFP) batteries: They are safer, lower cost, and longer lifespan, but may have lower energy density than NMC. They are becoming increasingly popular in budget electric vehicles.
- Lithium Nickel Cobalt Aluminum (NCA) batteries: They offer high energy density and excellent performance and are used in some high-performance electric vehicles.
- Sodium-ion batteries: They are a potential alternative to lithium batteries, as sodium is more abundant and less expensive. They are still in the early stages of development for widespread use in electric vehicles.
- Solid-state batteries: They are promising because they can offer higher safety, better energy density, and longer lifespan compared to conventional lithium-ion batteries. They are still under intensive development.

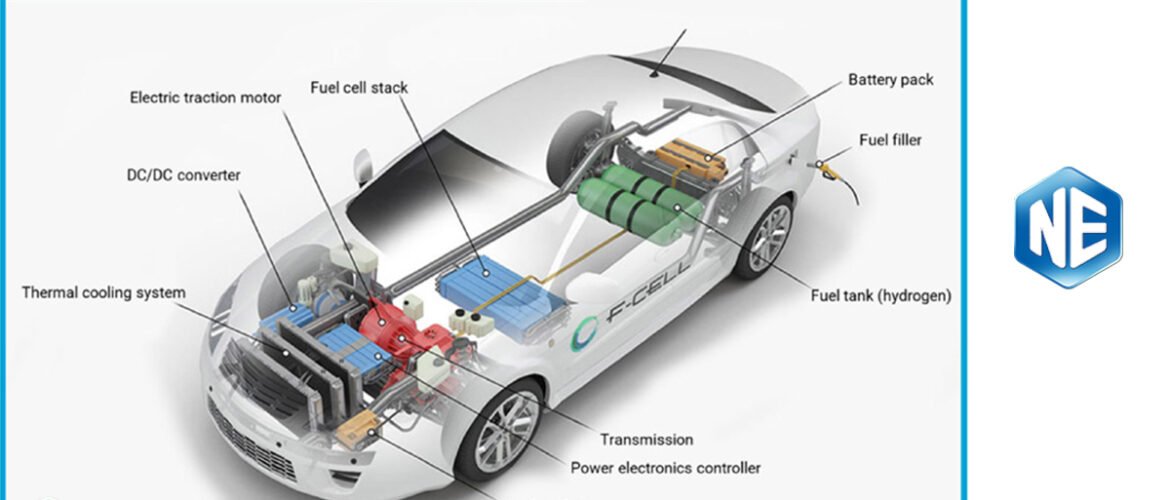

Components of ev vehicles
Electric cars consist of several key components that work in harmony to provide a unique and environmentally friendly driving experience. Here are the most prominent of these components:
- Battery: The heart of an electric car and its primary power source. The battery stores the electrical energy needed to power the electric motor and other devices in the car. It is often lithium-ion due to its high energy density and long life.
- Electric Motor: Converts the electrical energy stored in the battery into mechanical energy that drives the wheels. Electric motors offer instant torque, quiet operation, and high efficiency. Some electric cars have a single motor, while others have two or more motors to provide all-wheel drive and better performance.
- Power Electronics Controller: This unit acts as a control device between the battery and the electric motor. It converts the direct current (DC) from the battery into the alternating current (AC) required by the motor, regulating the motor’s speed, torque, and overall vehicle power.
- Onboard Charger: This device allows the electric car’s battery to be charged when connected to an external power source, whether a home charger or a public charging station. The onboard charger converts alternating current (AC) from the power source into direct current (DC) to store energy in the battery.
- Thermal Management System: This system maintains the ideal operating temperature for the battery, electric motor, and control unit. Temperature control helps ensure optimal performance and a longer lifespan for these vital components.
- Transmission (in some cases): Unlike conventional vehicles with multi-speed transmissions, many electric vehicles use a single-speed transmission or no transmission at all. The electric motor provides sufficient torque across a wide range of speeds, making gear changes unnecessary in most situations. However, some electric vehicles may use a simpler transmission to increase efficiency at certain speeds.
- Regenerative Braking System: Electric vehicles utilize regenerative braking to recover some of the kinetic energy that would normally be dissipated as heat in conventional braking systems. When the driver slows down or takes their foot off the accelerator, the electric motor acts as a generator, converting the kinetic energy into electrical energy that is fed back into the battery.
In addition to these main components, electric cars contain other systems similar to conventional cars, such as the steering system, suspension system, conventional brakes (as a backup or regenerative braking system), tires, and various electronics to control the vehicle’s functions and passenger comfort.
Types of Electric Cars
There are several main types of electric vehicles, differing in how they operate and their power source:
Battery Electric Vehicles (BEV):
- These cars rely entirely on electricity to operate.
- They contain a large battery that is charged from an external source (such as a home or public charging point).
- They do not have an internal combustion engine and therefore produce no tailpipe emissions.
- Examples include the Tesla Model 3, Nissan Leaf, and Chevrolet Bolt.
Hybrid Electric Vehicles (HEV):
- These cars combine an electric motor with an internal combustion engine (gasoline or diesel).
- The battery is smaller and is self-charging via the internal combustion engine and recovers energy from braking.
- They cannot be charged from an external source.
- They can travel on electricity alone for short distances at low speeds, helping to reduce fuel consumption and emissions.
- Examples include the Toyota Prius, Honda Civic Hybrid, and Toyota Camry Hybrid.
Plug-in Hybrid Electric Vehicles (PHEVs):
- A type of hybrid vehicle with a larger battery that can be charged from an external source in addition to being self-charging.
- They can travel longer distances on electricity alone than conventional hybrid vehicles, significantly reducing fuel consumption on short trips.
- Examples include the Porsche Cayenne E-Hybrid, Mercedes C 350 e, and Volvo XC90 T8.
Mild Hybrid Electric Vehicles (MHEVs):
- Use a small electric motor to support the internal combustion engine, especially when accelerating or starting.
- The battery is very small and is charged solely by recovering energy from braking.
- They cannot be driven solely on electricity.
- These are intended to improve fuel efficiency and slightly reduce emissions.
- Many popular cars incorporate this type of configuration.
How to Charge an Electric Car?
Charging an electric car is a relatively simple process, and there are several ways to do it:
Home charging:
- From a regular wall socket (Level 1): This is the slowest method. You can use the charging cable that came with the car and plug it into any regular household electrical outlet. This method is suitable for charging a small amount of power or if you have a lot of time (full battery charging usually takes several hours or even overnight).
- Using a home charging point (Level 2): This is the most common method of home charging. A special charging device is installed in your home (usually in the garage or parking space) and provides more power, significantly reducing charging time (full battery charging usually takes several hours). This method requires professional installation by a qualified electrician.
Public charging:
- Public charging stations (Level 2 and Level 3): Public charging stations are located in various locations, such as shopping malls, public parking lots, roadsides, and highway rest stops.
- Level 2 chargers: These are similar to home chargers in terms of speed and use almost the same type of socket.
- Level 3 or DC Fast Charging Chargers: These are the fastest charging methods currently available and can charge a car battery to approximately 80% in approximately 20-60 minutes, depending on the charger’s capacity and the size of the car battery.
- Workplaces: Some companies provide charging points for their employees as part of their employee benefits.
Discover the Benefits of Electric Vehicles with New Energy
New energy electric vehicles have many advantages that make them an attractive and future-proof choice. Here are some of the most important:
Environmentally friendly:
Zero emissions: Electric cars do not emit any harmful exhaust emissions while driving, such as carbon dioxide, nitrogen oxides, and fine particulate matter. This significantly contributes to improving air quality in cities and reducing environmental pollution and the effects of global warming.
Noise reduction:
Electric motors operate much quieter than internal combustion engines, reducing noise pollution in urban areas and providing a more comfortable drive.
Operating economy:
- Lower fuel costs: Charging an electric car costs much less than filling up with conventional fuel for the same distance traveled. You can charge your car at home at a lower cost, especially during times of low electricity tariffs.
- Less maintenance: Electric cars have fewer moving parts than conventional cars, reducing the likelihood of breakdowns and lowering the cost of routine maintenance such as oil and filter changes. It is estimated that the maintenance costs of electric cars can be approximately 50% lower than those of conventional cars.
Performance and Driving Enjoyment:
- Instant Acceleration: Electric motors provide instant torque, giving the car powerful acceleration and responsive acceleration.
- Smooth and Comfortable Ride: Electric cars offer smooth, quiet driving, with precise handling thanks to the immediate response of the engine and brakes.
Advanced Technology:
- Energy Efficiency: Electric cars are more energy efficient than fuel-powered cars, meaning they use less energy to travel longer distances.
- Home Charging: They offer the convenience of charging at home or at public charging points, eliminating the need for frequent trips to gas stations.
Government Incentives:
In many countries, governments offer incentives to encourage the purchase of electric cars, such as tax breaks or financial support, making them more economically attractive.
Of course, there are some challenges, such as the limited driving range of some models, charging times that can be longer than filling up with fuel, and higher initial purchase prices in some cases. However, ongoing developments in battery technology and charging infrastructure are gradually reducing these challenges.

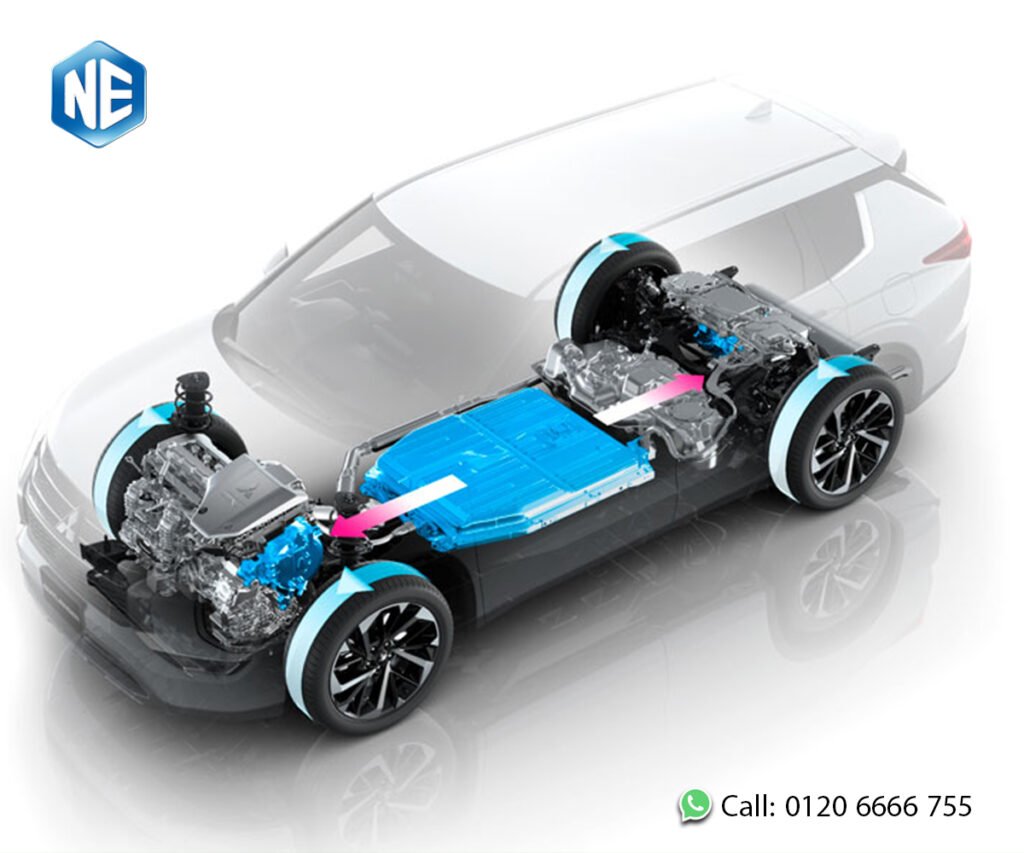

Future of Electric Vehicles
The future of electric vehicles is promising and full of exciting developments. Here’s a look at some key aspects:
Increasing Sales and Penetration:
- Electric vehicle sales are estimated to continue growing significantly. By 2025, they could account for 20% of all new vehicle sales, rising to 40% by 2030, and nearly covering all sales by 2040.
- In 2023 alone, global electric vehicle sales reached approximately 14 million, representing approximately 18% of all cars sold that year.
Advances in Battery Technology:
- Solid-State Batteries: These are considered the next generation of batteries, replacing liquid electrolytes with solid ones, offering greater safety, greater energy density, and faster charging times. Companies like Toyota and QuantumScape are leading research in this area.
- Silicon Anode Batteries: These batteries have greater energy storage capacity than traditional graphite anodes, increasing the range of electric vehicles.
- Lithium-sulfur batteries: They offer the potential for higher energy density, lower costs, and more sustainable materials compared to lithium-ion batteries.
- Other developments include technologies such as graphene batteries, which promise faster charging and higher performance, and sodium-ion batteries, which are a sustainable and less expensive alternative to lithium-ion batteries for short-range electric vehicles.
Improving charging infrastructure:
- Ultra-fast charging is being developed that can charge an electric vehicle battery in less than 30 minutes.
- Wireless charging technology is emerging that allows electric vehicles to automatically charge when parked.
- Future electric vehicles are expected to use artificial intelligence to locate and reserve ultra-fast charging stations along the way.
Autonomous driving and connectivity technologies:
- Future electric vehicles will integrate advanced driver assistance systems, such as LiDAR, to make autonomous driving safer and more reliable.
- Technologies such as predictive analytics and real-time traffic information integration will improve driving efficiency.
Smart energy management:
Electric vehicles may become part of the energy grid, enabling them to feed power back into homes or the grid during peak times, reducing electricity costs and providing backup power during outages.
Continued technological advancements, gradually declining battery costs, increased investment in charging infrastructure, and supportive government efforts all point to a bright future for electric vehicles and their growing role in the global transportation sector.
FAQ
The Key Components of an Electric Vehicle
- Battery: The heart of an electric vehicle and its primary power source. The battery stores the electrical energy needed to power the electric motor and other devices in the vehicle. The battery’s capacity depends on its size and energy density, determining the distance the vehicle can travel on a single charge.
- Electric Motor: Converts the electrical energy stored in the battery into mechanical energy that drives the vehicle’s wheels. Electric motors are characterized by their high efficiency and instant torque, providing smooth and rapid acceleration.
- Power Electronics Controller: This unit acts as an intermediary device between the battery and the electric motor. It controls the flow of electrical energy from the battery to the motor, regulating the motor’s speed and torque based on driver input (such as pressing the accelerator pedal). It also manages regenerative braking.
- Regenerative Braking System: A unique feature of electric vehicles. When the brakes are applied or the foot is released from the accelerator, the electric motor acts as a generator, converting a portion of the vehicle’s kinetic energy into electrical energy that is recharged in the battery. This increases energy efficiency and prolongs the life of conventional brakes. Onboard Charger: Converts alternating current (AC) from an external charging source (such as a wall outlet or public charging station) into direct current (DC) to store energy in the battery. The onboard charger’s capacity varies and affects charging speed.
- Charging Port: The point where the charging cable is connected to the vehicle to charge the battery. There are different types of charging ports depending on the region and standards.
- Transmission: Unlike conventional vehicles with multi-speed transmissions, many electric vehicles use a single-speed transmission or no transmission at all.
- Thermal Management System: This system maintains the ideal operating temperature for the battery, motor, and control unit. It helps ensure optimal performance and longer life for these sensitive components. This system typically uses a coolant or air-cooled system.
Components of ev vehicles and their functions
Electric vehicles (EVs) rely on a set of key components that work in harmony to move the vehicle efficiently and cleanly. Here are the most important of these components and their functions:
Battery Pack:
Function: The battery is the primary power source for an electric vehicle. It stores the electrical energy needed to power the electric motor and other devices in the vehicle.
Electric Motor:
Function: Converts the electrical energy stored in the battery into mechanical energy that drives the wheels.
Power Inverter:
Function: Converts the direct current (DC) coming from the battery into alternating current (AC) needed by the electric motor to operate. It also controls the amount of power sent to the motor, thereby controlling the vehicle’s speed and torque.
Battery Management System (BMS):
Function: Monitors and manages the battery’s performance and health. This includes monitoring the voltage and temperature of each cell in the battery, ensuring balanced charging and discharging of the cells, and protecting the battery from overcharging or deep discharge.
Charging System:
Function: Allows the battery to be recharged by connecting the vehicle to an external power source.
Regenerative Braking System:
Function: Recovers part of the vehicle’s kinetic energy during deceleration or braking and converts it into electrical energy to recharge the battery.
Transmission (in some cases):
Function: Most electric vehicles do not have a traditional multi-speed transmission, as is the case with fuel-cell vehicles. Instead, many electric vehicles use a single-speed transmission or no transmission at all, allowing the electric motor to provide sufficient torque across a wide range of speeds.
Cooling System:
Function: Helps maintain the ideal operating temperature for the battery, electric motor, and power control unit.
Electronic Control Unit (ECU):
Function: There are several electronic control units in an electric vehicle that manage various functions, including engine control, battery management, braking, and other safety systems.
Finally, we talked about the components of EV vehicles. Electric cars are cars that run entirely on electricity, and do not contain an internal combustion engine (fuel engine) like regular cars. That is, they use the electrical energy stored in their battery(s) to operate the electric motor (or motors) connected to the wheels and propel the car on the road.
